Help of if it real work?

OmriTGM · Jul 5, 2020

Hi my name is Omri, I have need to build an project to my class elctronic for my fainel test ok?
I have got stuck with the RC quadcopter radio controller and the VTX03 super.
I dont know if it works with this two i put down the links of the two of items pls help me to know!

RC Radio controller: https://he.aliexpress.com/item/32798210069.html?spm=a2g0s.8937460.0.0.467f2e0ena44du

VTX: https://www.banggood.com/Eachine-VT...=1081&p=CG24181822629201506N&cur_warehouse=CN

LoneRCRanger · Jul 5, 2020

I think we need an interpreter. What is your native language, because English certainly isn't it. I apologize if that seemed too terse.

wafflejock · Jul 6, 2020

As you can see in the diagram above the vid transmitter goes to receiver in the ground and the controller or transmitter in your hands separately goes to the quad on a different radio link so shouldn't interfere but still need tx receiver and video receiver to complete the set.

OmriTGM · Jul 6, 2020

wafflejock said:
View attachment 5951

As you can see in the diagram above the vid transmitter goes to receiver in the ground and the controller or transmitter in your hands separately goes to the quad on a different radio link so shouldn't interfere but still need tx receiver and video receiver to complete the set.

If you can help me to find the best controller and the cheapest it will be great i just need to find something that will be great with my vtx03
pls help and thank you

OmriTGM · Jul 6, 2020

0.1 version -
Frame - http://bit.ly/2npZVch
ESCs - http://bit.ly/2nq6zzi
Motors - http://bit.ly/2mv9h7z
PDB - http://bit.ly/2n9WZ17
VTX (upgrade) - http://bit.ly/2iF1bTB
FC (upgrade version - SPF3) - http://bit.ly/2nqgWmx
FPV camera (upgrade) - http://bit.ly/2naaZZ2
Props (upgrade) - http://bit.ly/2myf2B4

Here is my setup for my drone ok what i need more to get a best controller for the drone?

wafflejock · Jul 6, 2020

Best and cheapest are two different asks. To save some cash I'd say either look at the BetaFPV transmitter and "frsky receivers" that will work with it ( the video or vtx link is separate from the control link again see the drawing for real ) or looks at used Jumper T16 and check into the upgrade to fix the ribbon cables lots of people had problems with.

If wanting more problem free experience get a "radiomaster T18" or a jumper T16S. Both of these controllers come with 4 or 5 in 1 radio for control signals to work with frsky or spektrum receivers.

I like these for control link.

RadioMaster TX16S MKII EdgeTX RC Transmitter w/ V4.0 Hall Gimbals - Choose Version

You don't want to miss out on adding the RadioMaster TX16S MKII EdgeTX RC Transmitter w/ V4.0 Hall Gimbal to your setup. This is available in ELRS or 4in1 Module configurations.

www.racedayquads.com

RC Receivers for Sale - RaceDayQuads

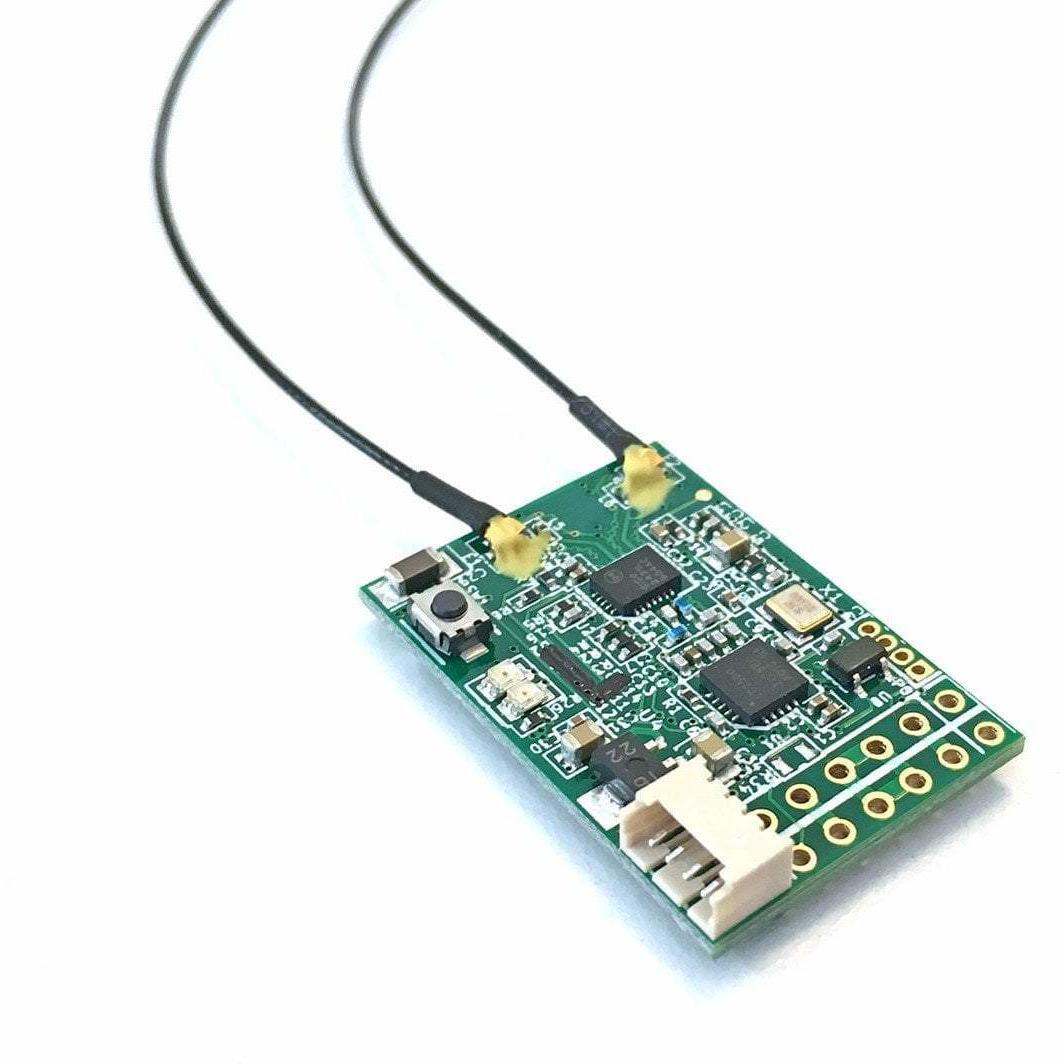

Make sure your transmitter and drone can talk with our RC receivers for sale! RDQ has the most reliable, powerful receivers on the market, so order today!

www.racedayquads.com

To reiterate the control link is completely separate from the video link, former is 2.4GHz and tx/rx need to be compatible, latter (video) works between companies so long as 5.8GHz analog video then any transmitter and receiver for video will work.

OmriTGM · Jul 6, 2020

wafflejock said:
Best and cheapest are two different asks. To save some cash I'd say either look at the BetaFPV transmitter and "frsky receivers" that will work with it ( the video or vtx link is separate from the control link again see the drawing for real ) or looks at used Jumper T16 and check into the upgrade to fix the ribbon cables lots of people had problems with.

If wanting more problem free experience get a "radiomaster T18" or a jumper T16S. Both of these controllers come with 4 or 5 in 1 radio for control signals to work with frsky or spektrum receivers.

I like these for control link.

RadioMaster TX16S MKII EdgeTX RC Transmitter w/ V4.0 Hall Gimbals - Choose Version

You don't want to miss out on adding the RadioMaster TX16S MKII EdgeTX RC Transmitter w/ V4.0 Hall Gimbal to your setup. This is available in ELRS or 4in1 Module configurations.

www.racedayquads.com

RC Receivers for Sale - RaceDayQuads

Make sure your transmitter and drone can talk with our RC receivers for sale! RDQ has the most reliable, powerful receivers on the market, so order today!

www.racedayquads.com

To reiterate the control link is completely separate from the video link, former is 2.4GHz and tx/rx need to be compatible, latter (video) works between companies so long as 5.8GHz analog video then any transmitter and receiver for video will work.

I want to buy this guy with Fs-iA10B
It will work??
FLYSKY FS-i6S i6S 2.4G 10CH AFHDS 2A Centering Throttle Transmitter with Holder iA6B A8S iA10B X6B Receiver RetailBox RC Drone
https://a.aliexpress.com/_dXAb4NQ

Dugdog47 · Jul 6, 2020

If you're going to buy a flysky get the i6x, it's the very best in the $50 range:

OmriTGM · Jul 6, 2020

Dugdog47 said:
If you're going to buy a flysky get the i6x, it's the very best in the $50 range:
View attachment 5952

only the controller to buy or another thing to buy two??

Dugdog47 · Jul 6, 2020

You only need one controller between the i6s and the i6x. The i6x is the better choice for the same money.

OmriTGM · Jul 6, 2020

Ok i found i6s with iA6B with my price limit
Now i need a good battery but most be cheape pls help and thanks dugdog47 and wafflejock

OmriTGM · Jul 6, 2020

And if i get iA6B reciver with the controller i can use it on the drone and forget about the vtx03??

LoneRCRanger · Jul 6, 2020

Glad someone figured it out and helped you!

OmriTGM · Jul 6, 2020

LoneRCRanger said:
Glad someone figured it out and helped you!

Me to

wafflejock · Jul 6, 2020

OmriTGM said:
Me to

You need vtx to plug the camera into and for it to transmit a video signal to the goggles. The transmitter and receiver for control signal is completely separate from the video signal not sure how else to say it.

Cam goes to vtx vtx transmits video analog signal at 5.8GHz, then receiver on the ground in goggles picks it up.

Separately the controller in your hands has a 2.4GHz radio link to the receiver on the quad.

So total there are two radio links with 4 parts a transmitter and receiver pair for each radio link.

wafflejock · Jul 6, 2020

Regarding batteries ovionic are good and not terrible expensive but any 3 or 4S battery with 1300mAh-1550mAh or so is a good size (assuming like 100A max discharge or like 60-80C battery at that size)

OmriTGM · Jul 6, 2020

Never mind listen i just want to use the camera with my controller and use a screen with it what to add and what to change pls

OmriTGM · Jul 6, 2020

wafflejock said:
Regarding batteries ovionic are good and not terrible expensive but any 3 or 4S battery with 1300mAh-1550mAh or so is a good size (assuming like 100A max discharge or like 60-80C battery at that size)

With this battery 2200mAh 30C 3s is good enough?
Link:

11.97US $ 38% OFF|2s 3s 4s 6s Rc Lipo Battery 7.4v 11.1v 14.8v 22.2v 1500 2200 3500 4200 5200 6000mah Rc Airplane Car Drone Quadcopter B6 - Parts & Accs - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com

wafflejock · Jul 6, 2020

OmriTGM said:
Never mind listen i just want to use the camera with my controller and use a screen with it what to add and what to change pls

Listen here you are not hearing what I'm saying the controller screen is just for setting up the controller it has 0 to do with the fpv system.

wafflejock · Jul 6, 2020

Those batteries will work in the short term but likely over discharging them and bigger size means more load on the motors etc.
